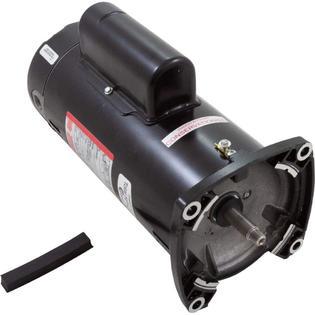

Motor, Cent, 2.5Hp, 230V, 1-Sp, Sf1, 48Yfr

Be it for your swimming pool pumps or spa pumps; now you have the appropriate replacement motor. Showcasing a square flanged mounting, it follows the method of automatic protection. Providing an open drip-proof enclosure, you need not worry about excessive moisture.

Product Features:

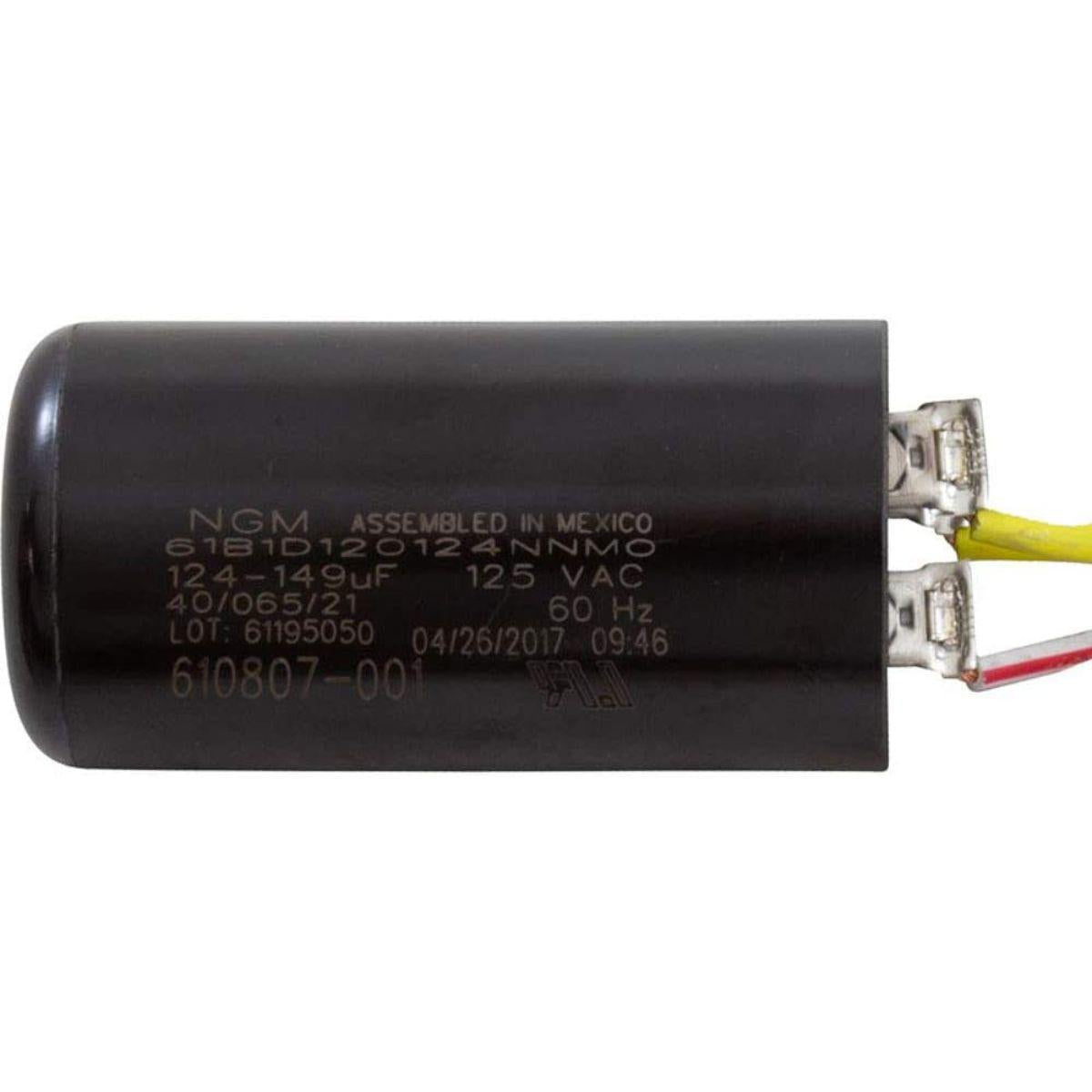

Capacitor start pool pump motor
Motor has a threaded shaft
UL 1081 design
Energy efficient
Single phase motors

Additional Features:
Output HP: 2.5 Hp
Current: 11.2 A
Frequency: 60 Hz
Service Factor: 1
Duty: continuous
Frame size: 48Y
Protector: automatic
UL: recognized
Output KW: 1.9 kW
Voltage: 230
Speed: 3450 rpm
Ambient temperature: 50C
Phase: 1
Insulation Class: B
Enclosure: open drip proof
CSA: Y

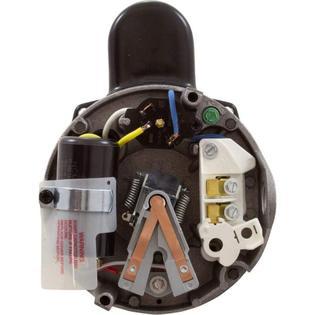

Electrical type: capacitor start capacitor run
Rotation: counterclockwise pump end
Motor orientation: horizontal
Opp drive end bearing:
Shaft type: threaded
Poles: 2

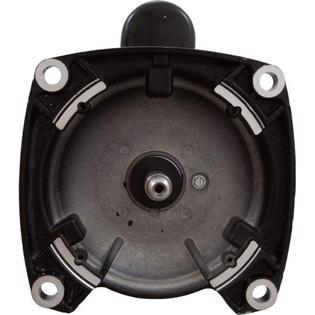

Mounting: square flange
Drive end bearing:

Dimensions:
Frame length: 10.69"
Shaft extension: 0.90"
Overall length: 14.57"
Shaft diameter: 0.62"

Material(s): stainless steel
Frame material: rolled steel Item:34259609
